Size :
16mm to 50mm
Standard :
BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function :
Recommended for use with braided, co-axial or SWA cables. A rubber seal compresses on cable to provide a tight fit against cable.
Ingress Protection :
IP66
Material :
Brass CW614N
Thread :
Metric
Features :
Outer Compression Seal
Accessories :
PVC Shroud, Earth Tag and Serrated Washer
IP66
Material :
Brass CW614N
Thread :
Metric
Features :
Outer Compression Seal
Accessories :
PVC Shroud, Earth Tag and Serrated Washer

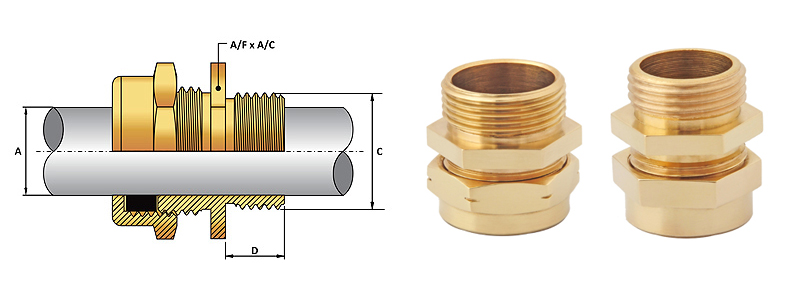

| Gland Selection Chart | ||||||
| Gland Size | Entry Thread"C" Metric | Thread Length "D" | Cable Dia. "A" | A/F | A/C | |
| Max. | Max. | |||||
| 16 | M16 | 8 | 3 | 7 | 20 | 23 |
| 20S | M20 | 10 | 7 | 10 | 24 | 26.2 |
| 20 | M20 | 10 | 10 | 14.5 | 27 | 29.5 |
| 25 | M25 | 10 | 14.5 | 20.5 | 35 | 39 |
| 32 | M32 | 10 | 20.5 | 26.5 | 43 | 47.5 |
| 40 | M40 | 15 | 26.5 | 34.5 | 51.5 | 57 |
| 50 | M50 | 15 | 34.5 | 43.5 | 58.5 | 65 |
