Brass Fasteners

Brass Nut Bolt and Washer We are manufacturing widely different kind of brass fastners as per DIN, ISO, ASTM standard and customer's requirement or specifications.

We are manufacturing Brass Nut, Bolt, Screw, Pin, Stud, Grub Screws, Rivet, Washers, Brass Threaded Inserts Brass Spacers. Generally, brass fastneres are made from free cutting brass. Regarding thread it will be availabe with metric, BSW, UNC, UNF. For brass bolt head hape will be different as per customer requirement, hexagonal, round, octagonal, square while screw will have pan head, round , CSK head . Slot pan head screw, etc/ Brass fastners mostly used in natural form but also avaible in nickle, tin, zinc plating form.

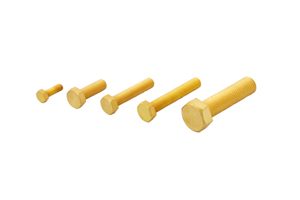

Brass Bolt
Brass CSK Screw
Brass Extension Screw

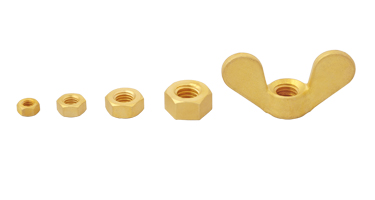

Brass Nut

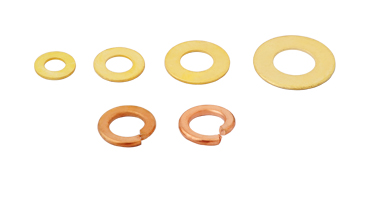

Brass Washer

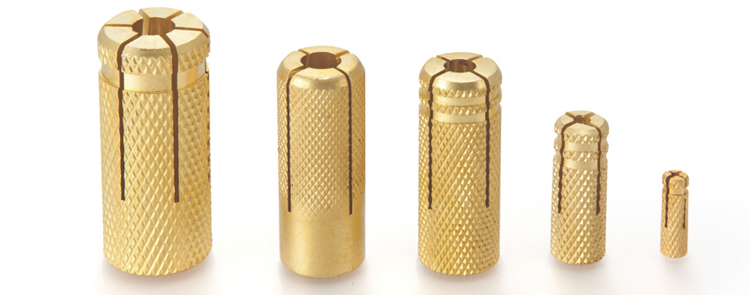

Drop In Anchor



Material :
Free Cutting Brass
Features :
Face fixing shallow drilling depth high corrosion and heat resistance.
Characteristics :
Internally threaded anchor with metric connecting threads. The Grooved and knurled anchor sleeve expands by turning in the screw. From fit in soft building materials and expansion in solid building materials.
Applications :
End Expansion in solid building material. Brass Anchors are multifaceted components and are able to work any surfaces like brick, concrete, metallic or timber based surfaces, Fixing mechanical services, Cable trays, Platforms, Drain covers, Suspended ceilings, etc.
Installation :
Drilling with depth gauge rod. Clean the drill hole Insert the brass Anchor with pre assembled screw into the drill hole until the screw head is flush to the building materials. Tighten the screw with accuracy (Anchor will be retracted a little from the drill hole).

Description M4 M5 M6 M8 M10 M12 M16
Nrec-Brick Load (kN) 0.02 0.055 0.7 1.2 1.6 2 3.25
Min. Distance to edge 30 35 40 45 50 55 65
Min. Dist. bet anchor 50 50 60 65 70 75 90
Min. Thickness material 25 27 35 40 45 50 53
ds-For Screw Dia 4 5 6 8 10 12 16
ho-Drill Hole Depth 20 25 28 35 40 45 50
do-Drill Hole Dia 5 6.5 8 10 12 15 20
Thread Length 11 14 15 18 22 23 25
Anchor Length 16 20 22 27 32 38 45

Thread Size M4 M5 M6 M8 M10 M12 M16
Outside (mm) 5 6.5 8 10 12 15 18
Full Length (mm) 15 20 25 30 32 40 43
Load Tension (kN) 0.02 0.87 1.1 1.4 2.2 2.3 2.5

Anchor size M6 M8 M10 M12 M16
Environmental conditions Inside dry Inside dry Inside dry Inside dry Inside dry
Anchor type Mechanical Anchor Mechanical Anchor Mechanical Anchor Mechanical Anchor Mechanical Anchor
Type of fixing Pre-setting Pre-setting Pre-setting Pre-setting Pre-setting
Material composition Brass Brass Brass Brass Brass
Standard embedment depth 22mm 28 33 38 44
Drill bit diameter 8mm 10 12 15 18 or 20
Drill Depth 27mm 35mm 39mm 46mm 50mm
Thread diameter M6 M8 M10 M12 M16
