Size :
M10 to M75
Material :
Brass, Chromium Plated
Gland Type :
JIS Standard-8802/8803/F8801
Entry Thread :
BSP
Ingress Protection :
IP66
Application :
For use all types of unarmoured cable
BSP
Ingress Protection :
IP66
Application :
For use all types of unarmoured cable

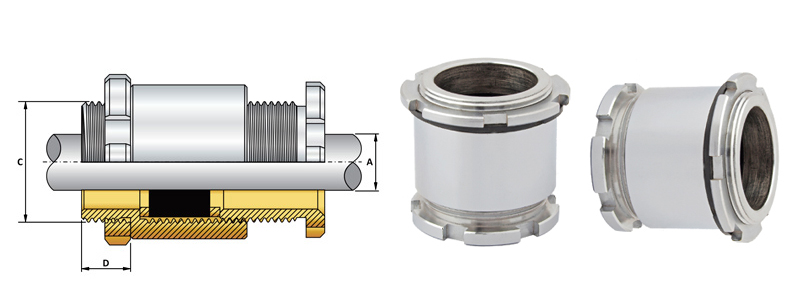

| Gland Selection Chart | ||||
| Gland Size | Thread BSP | Cable Dia. "A" | Thread Length "D" | Entry Hole Size mm |
| M-10 | ⅜" | 6-7 | 11 | 18 |
| M-15 | ½" | 8-11 | 11 | 22 |
| M-20 | ¾" | 11-15 | 11 | 27 |
| M-25 | 1" | 15-20 | 11 | 34 |
| M-30 | 1¼" | 20-26 | 12 | 43 |
| M-35 | 1½" | 26-30 | 12 | 49 |
| M-40 | 1½" | 30-34 | 12 | 49 |
| M-45 | 2" | 34-40 | 12 | 61 |
| M-50 | 2" | 40-44 | 12 | 61 |
| M-55 | 2½" | 44-50 | 12 | 75 |
| M-60 | 2½" | 50-56 | 12 | 75 |
| M-65 | 3" | 56-60 | 12 | 89 |
| M-70 | 3" | 60-64 | 12 | 89 |
| M-75 | 3" | 64-70 | 14 | 89 |
