CW Cable Gland

Size :
16mm to 90mm & ½" to 3½”
Standard :
BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function :
Providing environmental seal on the cable outer sheath. Also provides mechanical cable retention & electrical continuity via armoured wire termination in indoor and outdoor area with all types of SWA cable.
Ingress Protection :
IP66

Material :
Brass CW614N, Stainless Steel 316L
Thread :
Metric, NPT
Operating Temp. :
-60°C to +125°C
Cable Type :
Single Wire Armour (SWA) Cable
Seal Material :
LSOH Silicone Seal & LSOH Nylon Washer
Features :
Universal Anyway Clamping Ring, Outer Compression Seal
Accessories :
PVC Shroud, Earth Tag, Entry Thread Seal

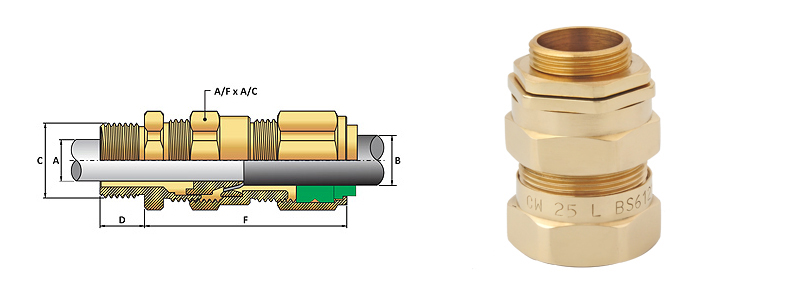

Gland Selection Chart
Size Standard Thread
Size "C"		 Optional Thread Thread Length "D" Cable Dia. "A" Max. Cable Dia. B Armour Wire Dia. Protrusion Length "F" A/F A/C
Metric NPT Metric NPT Min. Max.
20S16 20 ½" 25 ¾" 10 9 6.1 13.1 0.9 44.15 24 26.2
20S 20 ½" 25 ¾" 10 12 9.5 15.9 0.9-1.25 44.15 24 26.2
20 20 ½" 25 ¾" 10 14.2 12.5 20.9 0.9-1.25 47.15 30 33
25S 25 ¾" 32 1" 10 20 14 22 1.20-1.60 53.85 36 39.2
25 25 ¾" 32 1" 10 20 19.9 26.2 1.20-1.60 53.85 36 39.2
32 32 1" 40 1¼" 10 24 23.7 33.9 1.60-2.00 54.3 46 50.6
40 40 1¼" 50 1½" 15 33 27.9 40.4 1.60-2.00 56.9 55 60
50S 50 1½" 63 2" 15 38.5 35.2 46.7 2.00-2.50 55.75 60 65
50 50 2" 63 2½" 15 44.3 40.4 53 2.00-2.50 55 70 75
63S 63 2" 75 2½" 15 50.5 45.6 59.4 2.5 57.25 75 80
63 63 2½" 75 3" 15 56.5 54.6 65.8 2.5 59.75 80 85
75S 75 2½" 90 3" 15 62.5 59 72 2.5 65.5 90 95
75 75 3" 90 3½" 15 68.3 66.7 78.4 2.5 67.75 100 110
90 90 3½" 100 4" 20 80.5 76.2 90.3 2.50-3.15 77 112 122
