Size :
20mm to 90mm
Standard :
BS 6121:
Part-1:
2005, EN 50262:1999, IEC62444:2010
Function :
Provides mechanical cable retention & electrical continuity via armoured wire termination in indoor area. It is easy to install.
Ingress Protection :
IP2X
Material :
Brass CW614N
Thread :
Metric
Operating Temp. :
-60°C to +200°C
Cable Type :
Single Wire Armour (SWA) Cable
Features :
Two Part Armour Lock
Accessories :
PVC Shroud, Earth Tag, Galvanized Steel Lock Nut
Brass CW614N
Thread :
Metric
Operating Temp. :
-60°C to +200°C
Cable Type :
Single Wire Armour (SWA) Cable
Features :
Two Part Armour Lock
Accessories :
PVC Shroud, Earth Tag, Galvanized Steel Lock Nut

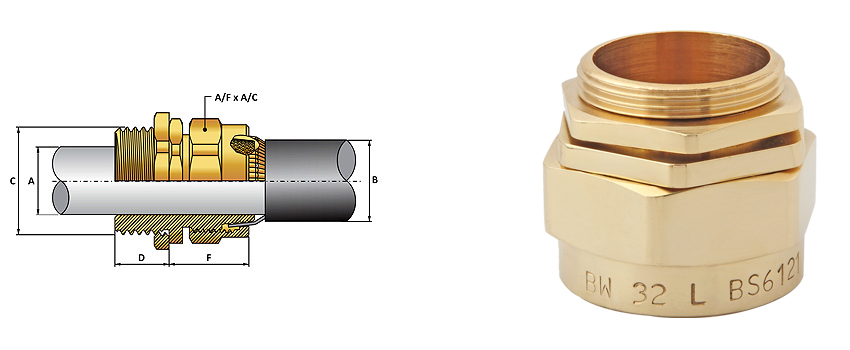

| Gland Selection Chart | ||||||||
| Size | Standard Thread Size "C" | Thread Length "D" | Cable Diameter | Armour Wire Dia. | Protrusion Length "F" | A/F | A/C | |
| Metric | Max. "A" | Max. "B" | ||||||
| 20S | 20 | 10 | 12.5 | 16 | 0.9-1.25 | 15.7 | 24 | 26.2 |
| 20 | 20 | 10 | 15 | 20 | 1.25-1.60 | 17.2 | 24 | 26.2 |
| 25 | 25 | 10 | 20.5 | 27.5 | 1.60-2.00 | 25.2 | 32 | 35 |
| 32 | 32 | 10 | 27.25 | 34.5 | 1.60-2.00 | 21.5 | 40.5 | 45 |
| 40 | 40 | 15 | 33.3 | 41.5 | 1.60-2.00 | 23.2 | 48 | 52 |
| 50s | 50 | 15 | 38.5 | 47 | 2.00-2.50 | 26.8 | 55 | 60 |
| 50 | 50 | 15 | 44.5 | 52 | 2.5 | 27.2 | 61 | 65 |
| 63s | 63 | 15 | 51 | 59.2 | 2.5 | 27.5 | 70 | 75 |
| 63 | 63 | 15 | 56.8 | 65.5 | 2.5 | 28.5 | 15 | 80 |
| 75s | 75 | 15 | 64 | 74 | 2.5-3.15 | 29.4 | 85 | 90 |
| 75 | 75 | 15 | 68.2 | 79.5 | 3.15 | 30 | 90 | 95 |
| 82 | 82 | 15 | 74.7 | 84.4 | 3.15 | 40.2 | 96.5 | 103 |
| 90 | 90 | 15 | 82.8 | 91 | 3.15 | 40 | 109 | 118 |
