Size :
G204 to G755
Standard :
BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function :
Provides mechanical cable retention & electrical continuity via armoured wire termination in dry indoor area for all types of SWA cables.
Ingress Protection :
IP2X
Material :
Brass CW614N, Stainless Steel 316L
Thread :
Metric
Operating Temp. :
-60°C to +200°C
Cable Type :
Single Wire Armour (SWA) Cable
Features :
Armoured Ring
Accessories :
PVC Shroud and Earth Tag
Brass CW614N, Stainless Steel 316L
Thread :
Metric
Operating Temp. :
-60°C to +200°C
Cable Type :
Single Wire Armour (SWA) Cable
Features :
Armoured Ring
Accessories :
PVC Shroud and Earth Tag
| Gland Selection Chart | ||||||||

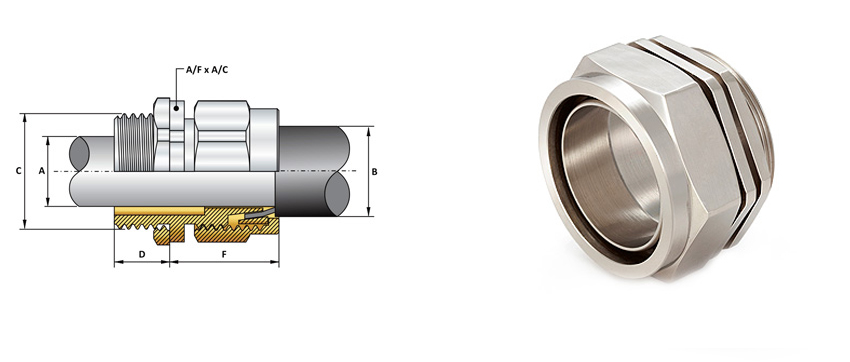

| Size | Standard Thread Size "C" | Thread Length "D" | Cable Diameter | Armour Wire Dia. | Protrusion Length "F" | A/F | A/C | |
| Metric | Max. "A" | Max. "B" | ||||||
| G-204 | 20 | 10 | 12.5 | 16 | 0.90-1.25 | 17 | 22 | 24.25 |
| G-206 | 20 | 10 | 15 | 20 | 0.90-1.25 | 17.5 | 24 | 26.2 |
| G-254 | 25 | 10 | 18.5 | 24 | 1.25-1.60 | 19 | 30 | 33 |
| G-256 | 25 | 10 | 20.5 | 27 | 1.25-1.60 | 20.25 | 32 | 35 |
| G-324 | 32 | 10 | 27.25 | 34 | 1.60-2.00 | 20.5 | 40.5 | 45 |
| G-326 | 32 | 10 | 27.25 | 34 | 1.60-2.00 | 20.5 | 40.5 | 45 |
| G-405 | 40 | 15 | 31 | 37.5 | 1.60-2.00 | 21 | 44.5 | 50 |
| G-503 | 50 | 15 | 34.5 | 41 | 2.00-2.50 | 22 | 47.5 | 52 |
| G-505 | 50 | 15 | 41 | 48 | 2.00-2.50 | 21.5 | 56.5 | 61 |
| G-636 | 63 | 15 | 44.5 | 54 | 2.5 | 24.25 | 61 | 65 |
| G-753 | 75 | 15 | 51.5 | 59 | 2.5 | 26 | 67.5 | 72 |
| G-755 | 75 | 15 | 56.75 | 65 | 2.50-3.15 | 26 | 75 | 80 |
